Product Details
Can be dressed even with a blade dresser CBN Vitrified-bonded wheel
VitSoft offers a blade dresser—an alternative to standard sintered grinding wheels—for grinding tools and dies, such as high-speed steel and die steel, that can be dressed.CBN vitrified-bonded wheels as an alternative to standard sintered grinding wheels for grinding tools and dies, such as high-speed steel and die steel. These wheels are easy to shape using a blade dresser and offer higher efficiency and longer service life compared to standard sintered grinding wheels (WA).
Application
- Grinding of Hardened Materials Such as High-Speed Steel and Die Steel
Bond Type
- Vitrified
Product characteristics
Surface Grinding Test Data
Features of Vitsoft
◇ Can be dressed using a blade dresser
◇ Longer service life compared to standard grinding wheels
◇ Capable of machining hardened materials that are difficult to machine with standard grinding wheels
Machining Examples: Machining of Hardened Steel
| (technical) specification | Dimensions | Notes |
|---|---|---|
| B140-VSM | 200D-10T | VSM: Designed for Maximum Sharpness |
| B140-VSP | 200D-10T | VSP: Designed for Long Service Life |
| WA Whetstone | 205D-19T |
Workpiece: SUJ2, Hardened to HRC60
Dresser: Blade Dresser (0.4□-3-blade type)
Machine: Horizontal Surface Grinder
Processing Method: Wet Plunge Grinding
‐Test Conditions
Dressing Conditions
Wheel peripheral speed 1,800 m/min
Depth of cut 0.002 mm/pass
Dressing lead 0.05 mm/rev
Machining Conditions
Wheel peripheral speed 1,800 m/min
Depth of cut 0.01 mm/pass
Lateral feed rate: 12,000 mm/min
Results
| B140-VSM | B140-VSP | WA Whetstone | |
|---|---|---|---|
| Grinding Ratio (Relative Ratio) | 68 | 120 | 1 |
| Grinding Normal Resistance (N) | 17 | 25 | 40 |
‐Scope of Application *When using a blade dresser
Dimensions: 400D-30T

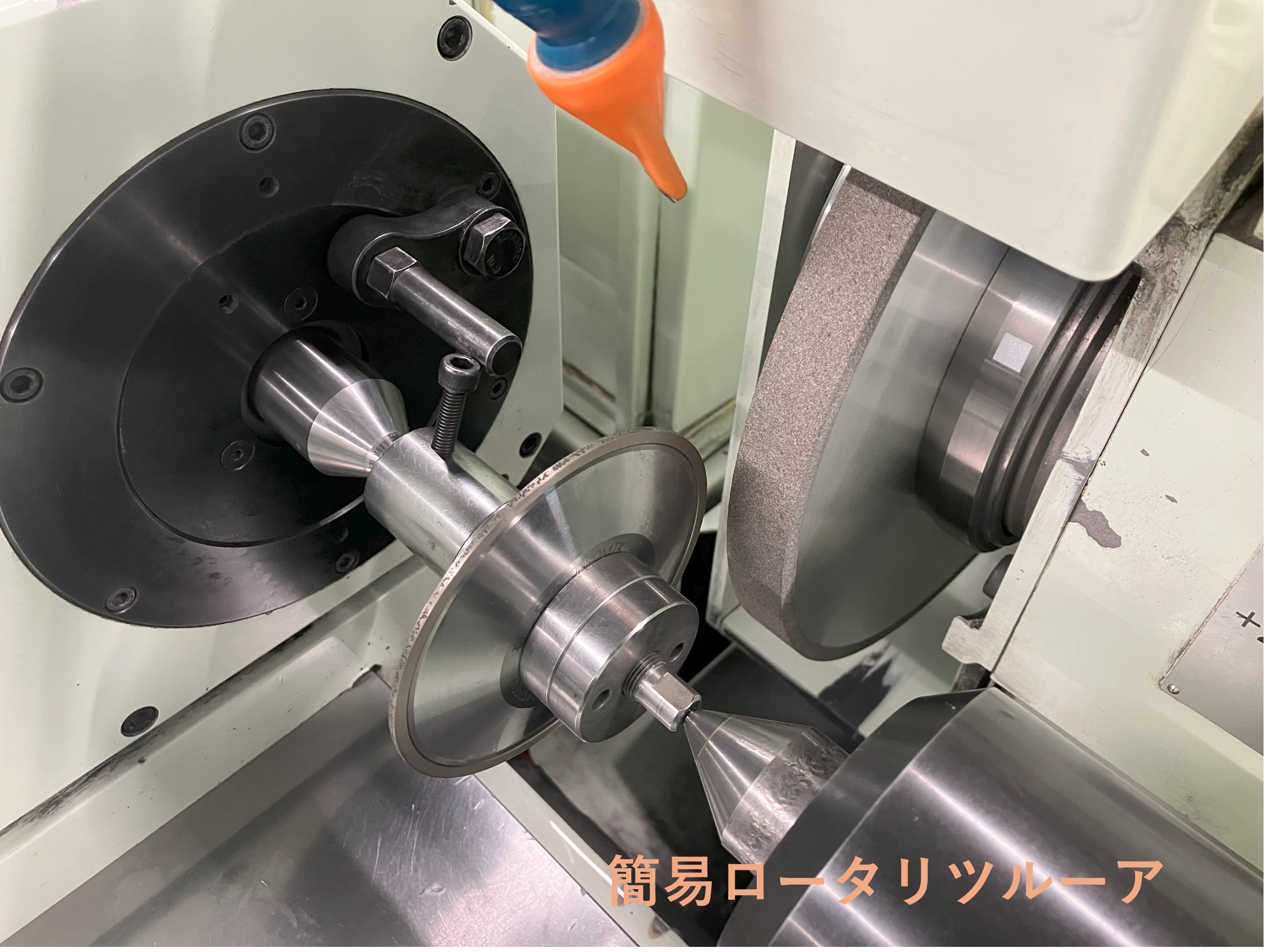

For sizes larger than this, please use a simple rotary trimmer or similar equipment.
Please feel free to contact us for more details.
