Notch Grinding Wheels

Product Details

High performance notch grinding wheels with shape retention and high sharpness and long life

Small-diameter formed wheels are used to finish the notches of large-diameter wafers. Our notch grinding wheels maintain the run out accuracy of diamonds to the shank, and realize a favorable wafer circumference. As with our edge grinding wheels, we are able to provide a wide variety of specifications, including single-grooved wheels, multi-grooved wheels, and wheels for both rough and finish grinding.

Application

• Notch section finishing of large diametar wafer. Rough and finished

Bond Type

• Metal
• Resin

Product characteristics

The table of sizes

Process	Bond	Grit size	Feed Speed
1st Rough grinding	Metal	#800	0.1~0.5mm/sec
2nd Fine grinding	Metal Resin	#1500~#3000	0.1~0.5mm/sec

Scroll

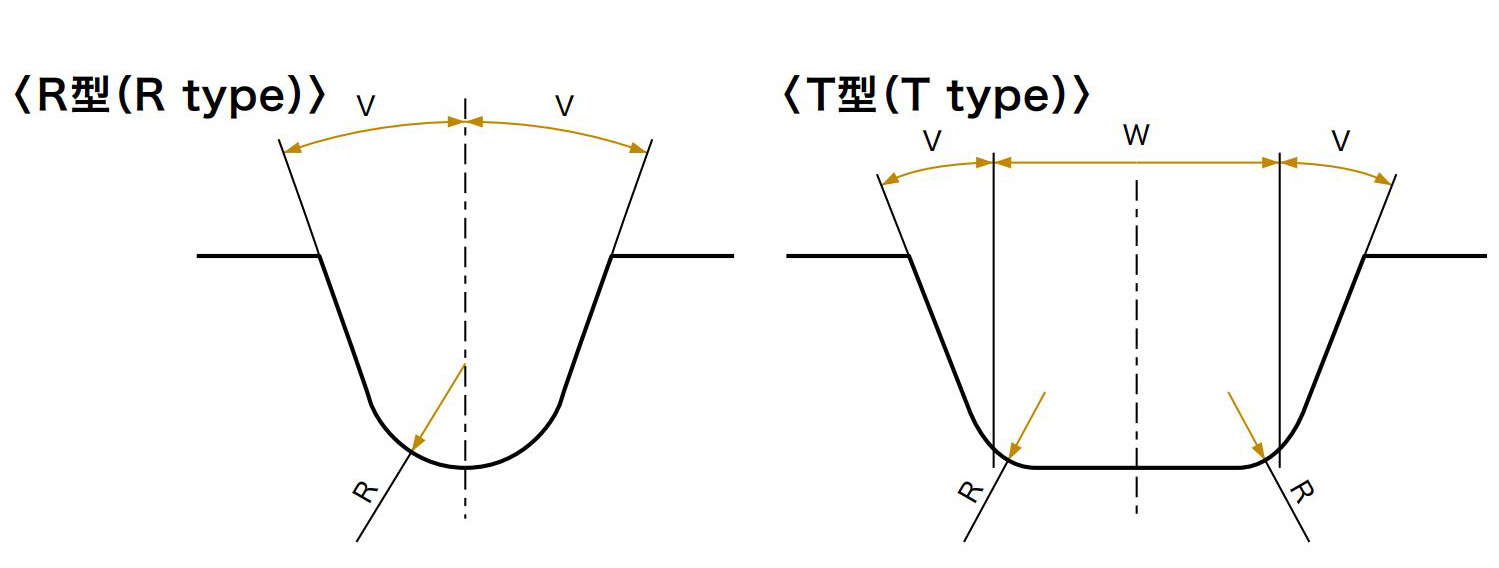

Share of the diamond layer
(R type) (T type)
